New Mobile X-Ray Radiographic Equipment at the The X-Ray Club catalog

MinXray high frequency portable medical x-ray units offer the highest power-to-weight ratios available from any manufacturer. These models are designed for use in nursing homes, private homes, correctional facilities, field clinics, hospitals, or anywhere an x-ray machine must be brought to a patient. MinXray's high frequency x-ray units and their companion stands provide the most easily transportable, user-friendly systems available for general purpose off-site medical diagnostic radiography.

Rugged, dependable MinXray equipment is capable of all routine radiographic views you would expect from a portable unit. Detailed images of chest, abdomen, skull, spine and extremities are easily obtained with short exposure times.

For maximum power, the HF100H x-ray unit is the unit of choice. The total weight of the system, including the innovative XGS Mk II stand, is less than 85 lbs. (38.6 kg.). The HF100H features an integral 60 kHz full-wave rectified power supply, permitting shorter exposure times and minimizing potentially harmful, lower kV radiation. Output is variable from 40 to 100 kVDC (20 mA at all settings) in 2 kV steps. The unit has an ultra high-resolution timer, adjustable in 0.01 second increments to a maximum of 80 mAs.

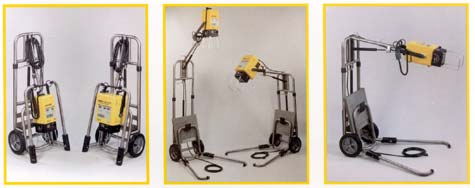

The XGS Mk II dual gas spring portable mobile stand is easy to transport and exceptionally maneuverable in tight quarters. It unfolds for use and folds for transport in less than 10 seconds. This stand is made of stainless steel, which will always look clean and professional. With an x-ray unit attached, the XGS Mk II is easy to handle when taking into or out of a vehicle. Stairs are no problem.

Also available for use with the XGS Mk II stand is the lighter,lower-powered HF80H+ x-ray unit.This economical model generates from 50-80 kVDC, producing 15 mA at all settings. Total weight of the HF80H+ and XGS Mk II is just 70 lbs. (31.8 kg).
Each model features automatic, dynamic line voltage compensation to assure you of consistent radiation output over a range of available
electrical conditions. You will get the full maximum rated mA output at every kVDC setting. Small x-ray tube focal spot sizes produce images with excellent fine detail resolution.

Offering the highest power-to-weight ratios available from any manufacturer, MinXray's family of high frequency veterinary portable x-ray systems consists of the HF80+, the HF8015 ultra light and the new HF100/30 ultra light. The new SA100HF small animal package offers high frequency radiography in an economical combination for clinic use. Equine, mixed, small animal and zoo practices can put MinXray models to daily use with excellent radiographic results.

Each model features automatic, dynamic line voltage compensation to assure you of consistent radiation output over a range of available electrical conditions. You will get the full maximum rated mA output at all kVDC settings. Small x-ray tube focal spot sizes produce images with excellent fine detail resolution. Continually adjustable light beam collimators are standard on each model, eliminating guesswork in positioning. MinXray portable units come with a patented, fitted carrying case to protect your investment. Note: carrying case not included in SA100HF package.

X200GTLS Compact X-ray Table is space efficient, and comes complete with a tube arm, cassette tray, grid holder, and a floating tabletop. It is compatible with the HF80+, HF100, HF100/30 ultra light, and included with the SA100HF.

LP1 Laser Pointer makes positioning in daylight easy by projecting a bright red dot at the center of the beam. You can easily attach the LP1 to any MinXray unit with a model R120H collimator, including the HF80, HF80+, and HF100.

300GS Portable Mobile Stand is designed for clinic use with all x-ray models. This versatile stand can easily position the x-ray unit over a table or at floor level for small and large animal radiographic positioning.

FS-HF Foot-operated Exposure Switch can be used with any MinXray high frequency x-ray unit. Like the handheld exposure switch supplied with each model, the FS-HF is a two-stage switch. You can control the separate steps of x-ray tube filament preheat and exposure initiation.

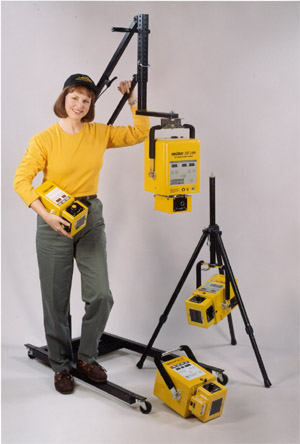

MinXray portable dental x-ray equipment is designed for use in nursing homes, private homes, correctional facilities, field clinics, military installations, or anywhere an x-ray machine must be brought to the patient. Two models are available --HF70D and P200D Mk III. Each unit has the control integral with the head, simplifying setup and reducing the number of
carrying case for the tubehead, cords, and dental cone.

The ultra lightweight HF70D is perfect for field hospitals and remote clinics. All controls are located on the HF70D tubehead. The model HF70D sets a new standard for portable dental x-ray units. Incredibly light in weight, its high frequency circuitry produces a higher power-to-weight ratio than any
other portable system. The HF70D generates 10 mA at 60, 65, and 70 kVDC, and weighs only 9.25 lbs. (4.2 kgs)! Line voltage compensation is automatic. Short, closely spaced exposure time settings make this unit ideal for use with any imaging modality, including digital.

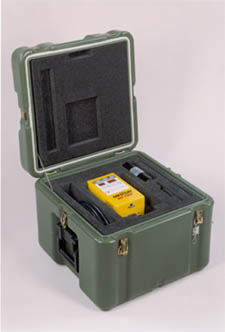

The HF70D comes complete with dental cone, backscatter shield, power cord, exposure cord, and carrying case meeting military specifications. You can order the HF70D for either 115V or 230V use. The MinXray HF70D is compatible with the model X100S tripod stand.

The P200D MK III is an attractive lightweight unit used by practitioners worldwide. A lightweight, rugged, truly portable x-ray unit for dental radiography, the P200D Mk III comes complete with power cord, exposure cord, dental cone, and a rugged carrying case. Used by practitioners in the human and veterinary fields, the P200D Mk III has ample power at 63kVp - 12 mA.

Available in both 115V and 230V configurations, the P200D Mk III is simple to operate. Only two controls must be set; the line voltage compensator and the built-in electronic timer. Compatible with all imaging modalities, including digital, consistent results are assured wherever the equipment is used.

Both the HF70D and the P200D Mk III can be coupled with the lightweight model X100S Tripod Stand, offering a new dimension in portable dental radiography.

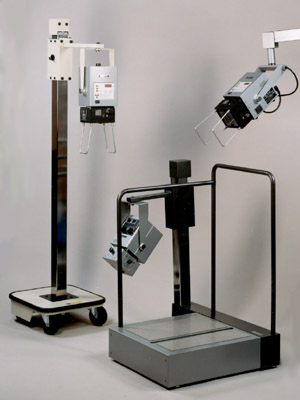

Working with leading podiatrists, MinXray designed and built its first podiatric x-ray unit in the early 1970s, just a few years after the company was established. Today, MinXray offers three x-ray units to the podiatric professional; the stationary model PS200, mobile model PM200R40, and wall-mounted model PW200R40.

Our first unit was a floor model designed for weight bearing radiography. Experience in podiatry over the years resulted in many improvements culminating in the current model PS200.

This versatile system can be installed with the x-ray unit on either the left or right side of the orthoposer base to best fit the space available in the podiatry office. DP, AP and oblique views may be taken without having the patient mount the orthoposer base, thus enhancing safety. Lateral views of the foot, all ankle views and other specialty views are taken with the patient standing on the orthoposer base. The economical MinXray PS200 has a clean contemporary design requiring minimal floor space.

The PS200 features the P200 tubehead. Accurate positioning is made easy; the continuously adjustable light beam collimator indicates the center of the x-ray beam while illuminating the entire field of radiation for full or partial film exposures. In addition to the collimator shutters, only two controls must be set; the line voltage compensator and the electronic timer. The life of the x-ray tube is extended through the use of thermal overload protection. The collimator light bulb is protected via an automatic shutoff.

The new MinXray model PM200R40 is a mobile x-ray unit that can be easily wheeled from room to room. The base is counterweighted and stable, eliminating the need for long legs. The height of the tubehead is easily positioned for weight bearing radiography on the floor or an orthoposer, or non-weight bearing views over a chair or operating table.

Wall mounting is possible with the new MinXray model PW200R40 x-ray unit. This model takes no floor space, and can be mounted to facilitate weight- or non-weight bearing radiography. The double balance arm extends the focal spot 72" from the wall, with 44" of vertical travel. When folded, the compact arm requires minimal wall space. The PW200R40 can be installed for use within a single room, or mounted on a common wall to swing between two areas.

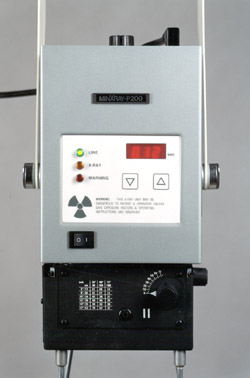

MinXray mobile and wall-mounted x-ray units use the new P200R40 x-ray tubehead. Digital touch pad controls on the tubehead make it easy to set exposure times. The continuously adjustable collimator is certified for general-purpose radiographic use. A convenient inclinometer indicates the tubehead angle, simplifying positioning.

The openness of these podiatric x-ray systems allows wheelchair patients easy access to the radiographic area. Purchase of the MinXray PS200, PM200R40, or PW200R40 should qualify for a Capital Expenditure Tax Deduction or a Disabled Access Tax Credit under the Americans With Disabilities Act of 1990. An informational bulletin describing these tax deductions and credits is available from MinXray. As always, you should seek professional accounting advice on this matter.

MinXray Orthoposer for use With Mobile and Wall-Mounted X-Ray Systems The MinXray Orthoposer is designed for easy use and patient safety. For lateral projections it will firmly hold any cassette, or non-screen film envelope up to 10" x 12" (24cm x 30cm), while exposing half the film. The unexposed half of the film is protected from radiation by a built-in lead shield. The Orthoposer is made with attractive, easy to clean laminate, and complements any decor. It is low enough for easy mounting and large enough so the patient feels secure. The MinXray model OP Orthoposer can be used with most x-ray units.

Specifications
Height................7 in. / 17.8 cm
Length...............28 in. / 71.1cm
Width................14 5/16 in. / 36.4 cm
Weight...............15 lbs. / 6.8 kg.
Accommodates up to 10" x 12" (24cm x 30cm) cassettes or non-screen film

When portability, performance and cost are important, DynaRad has the answer. DynaRad portables are the first choice for incomparable image quality at a price that meets cost containment goals. DynaRad portables are designed for years of reliable, low maintenance operation and are ideally suited for radiographic applications, ranging from home healthcare to hospital-quality imaging performed anytime ... anywhere.

ELECTRICAL SPECIFICATIONS:

Generator Type: High frequency inverter, 2.5 kilowatt output
kVp Range: 50-100 kVp continuously adjustable, with 1kVp resolution
mA Range: Fixed, 15 mA and 25 mA, constant independent of kVp or time settings
Exposure Time: 0.01 to 4.0 seconds in 96 increments
Indicators Ready, X-ray On, mA Selected. Digital display of kVp, mAs and time. AEC grid and density control.
Exposure Switch Detachable hand switch, two position, Prep and X-ray On
X-ray Tube: Stationary anode, 110kVp
Filtration: 2.7mm of alumimum at
100kVp (min)
Target Material: Tungsten
Anode Capacity: 30,000 heat storage capacity
Focal Spot: 1.0mm (NEMA)
Beam Angle: 2.5°
Collimator: P180HS
Lamp Source: 30 second timer
Tape Measure: For SID distance
Inclinometer: For angle measurement
Electrical
Requirements: 110-125 VAC, 50 or 60Hz or 220-250 VAC, 50 or 60 Hz 60Hz
systems. Specifications subject to change without notice.

MECHANICAL SPECIFICATIONS:

Maximum Focal Spot to Floor: 78"
Minimum Focal Spot to Floor: 15"
Horizontal Extension of Focal Spot: 21"
Rotation About Horizontal Axis: 360°
Rotation About Tube Axis: 270°
System Dimensions in storage position (front leg folded): Horizontal -
26"W x 53"L x 28"H
Vertical -
52"W x 25"L x 27"H
System Weight: Total system weight - 150 lbs.
Component Weight: HF-110A-C Control Cabinet - 32 lbs.
HF-110A-G X-ray Generator - 50 lbs.
HF-110A-S Mobile Stand - 58 lbs
HF-110A-D Cassette Drawer - 10 lbs.

OPTIONAL EQUIPMENT: Automatic Exposure Control

Certified to be in compliance with FDA regulations concerning general purpose portable X-ray systems. Specifications subject to change without notice.

A mobile system designed to address the critical imaging requirements for the most intricate parameters of a Neonatal Department. The unique six-wheel transport cart allows for easy maneuvering in the tightest spaces. The system utilizes a "BOOM STYLE" tube support arm to facilitate fast, easy positioning in every clinical environment. The NEO provides just what other systems can't ... shorter exposure times, higher contrast and superior resolution. Now DynaRad delivers the system specifically designed for this demanding procedure and gives you the superior image quality you have always needed.

ELECTRICAL SPECIFICATIONS

Generator Type: High frequency inverter, 3.5 kilowatt output
kVp Range: 40-70 kVp with 1kVp resolution, 50mA output
mA: 50mA output
mAs Range: 0.25 mAs to 10 mAs in40 steps
Exposure Time: 0.005-0.2 second, in 40 steps
Digital Display kVp, mAs and Time
Exposure Switch Detachable hand switch, two position, Prep and X-ray On
X-ray Tube: Heavy duty, rotating anode 0.3mm focal spot, 12 degreetarget, 300,000 heat units
Collimator: D180HS
Lamp Source: 30 second timer
Tape Measure: for SID distance
Electrical Requirements: 110 / 220VAC, 50 / 60Hz

MECHANICAL SPECIFICATIONS

Maximum Focal Spot to Floor: 80" (203 cm)
Minimum Focal Spot to Floor: 35½" (90 cm)
Horizontal Extension of Focal Spot: 24" (61 cm)
Minimum Rotation About Horizontal Axis: 110°
Minimum Rotation About Tube Axis: 135°
Minimum Rotation of Vertical Mast: 300°
System Dimensions in Storage Position: 24"W, 44"L, 79"H
(61 x 112 x 201mm)
